MQSPACK MP303 Fully Auto Conveyorized Pallet Wrapper

  • The film wrapping mechanism automatically closes, breaks, and breaks the mucous membrane
  • Slewing bearing turntable, stable and reliable, without noise
  • Dynamic pre stretching membrane frame, pre stretching up to 250%
  • Intelligent touch screen, intuitive and easy to understand operation
  • Photoelectric induction, automatic sensing of cargo height, more intelligent
  • Equipped with a brush/rubber film brushing mechanism, the winding film perfectly
Get in touch

Description

Product Parameters
Pal let Size: L（800-1200）mm*W(800-1200)mm Power 2.1KW
Tumtable Speed: 0-15rpm/min，speed variable, turntable soft start & soft stop Machine voltage 220V,50/60HZ,20A
Wrapping Height: 2100mm Machine Weight 1800kg
Loading Weight： MP303A:1000kg;MP303B:2000kg Control PLC programmable control
Pre tensioning ratio： 250% Working Method fully auto unmanned
Turntable Height： 456mm Air Peessuce 0.4-0.7Mpa
Carriage Speed： 3m/min Machine Dimensions A：2775*1800*2850mm;B:2875*1800*1950mm
Cut Method heater Machine Weight： A:1200kg; B:1150kg
Packing Speed 18-25 pallets/h

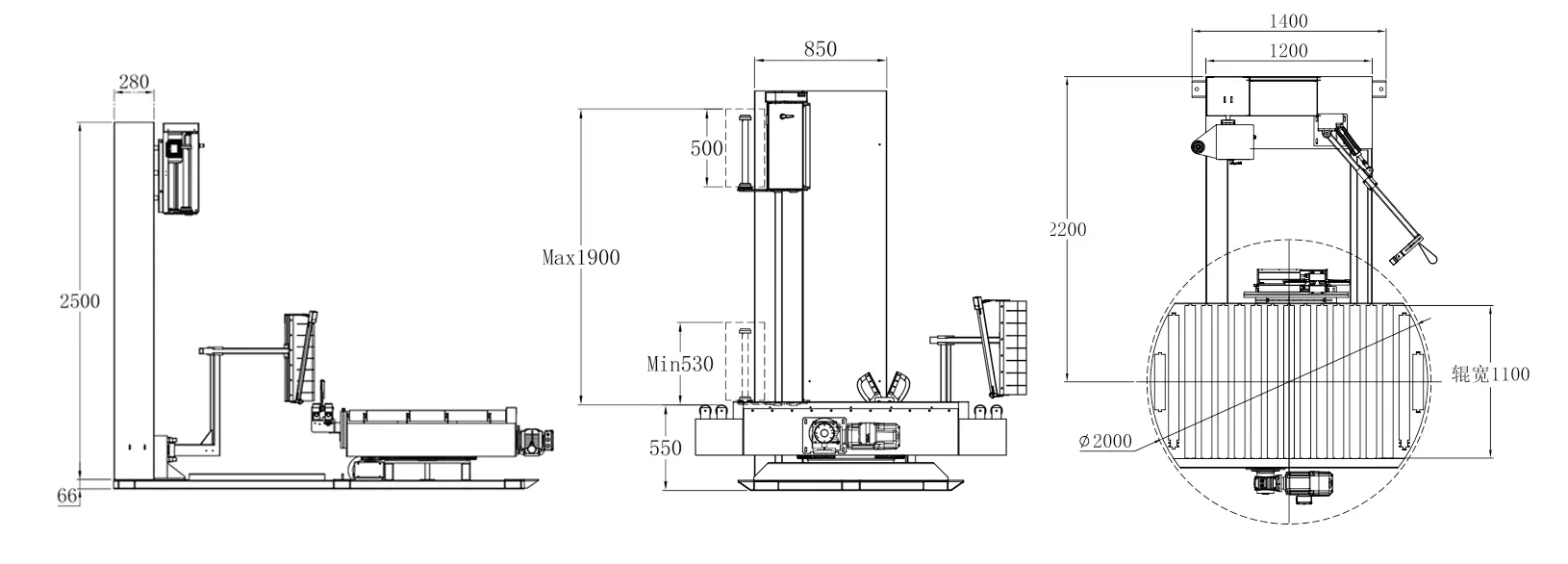

Drawing Size
