MQSPACK MP 402D Fully Auto Rotary Arm Wrapper with Top Sheet Dispenser

*Two working mode choices： wrapping, or wrapping with top sheet dispensing.

*Automatic apply & cut film.

*Powered pre-stretch ratio: 250%.

*Automatic wrapping according to pre-set parameters. Touch screen user interface for setting wrap cycles, top/bottom cycles & film tension.

*Rotary arm home position, highly sensitive rotary brake system.

Get in touch

Description

Product Parameters
Rotation Speed: 0-20rpm/min，variable Power: 2.5KW+conveyor line
Pallet Size: W(500-1200)mm*L(500-1200)mm Conveyor Height: 450mm
Wrapping Height: 1800mm Conveyor Speed: 0-12m/min
Pre tensioning ratio: 250% Machine voltage: 380V,50/60HZ,20A
Carriage Speed: 3m/min Machine Weight: 1800kg
Top Sheet Pulling Speed: 12m/min Machine Dimensions: 3200*3220*3120mm
Top Sheet Size: 1800mm,length adjustable Control: PLC programmable control、touch screen
Cut Method: heater Working Method: fully auto unmanned
Packing Speed: 20-30 pallets/h Air Peessuce: 0.4-0.7Mpa

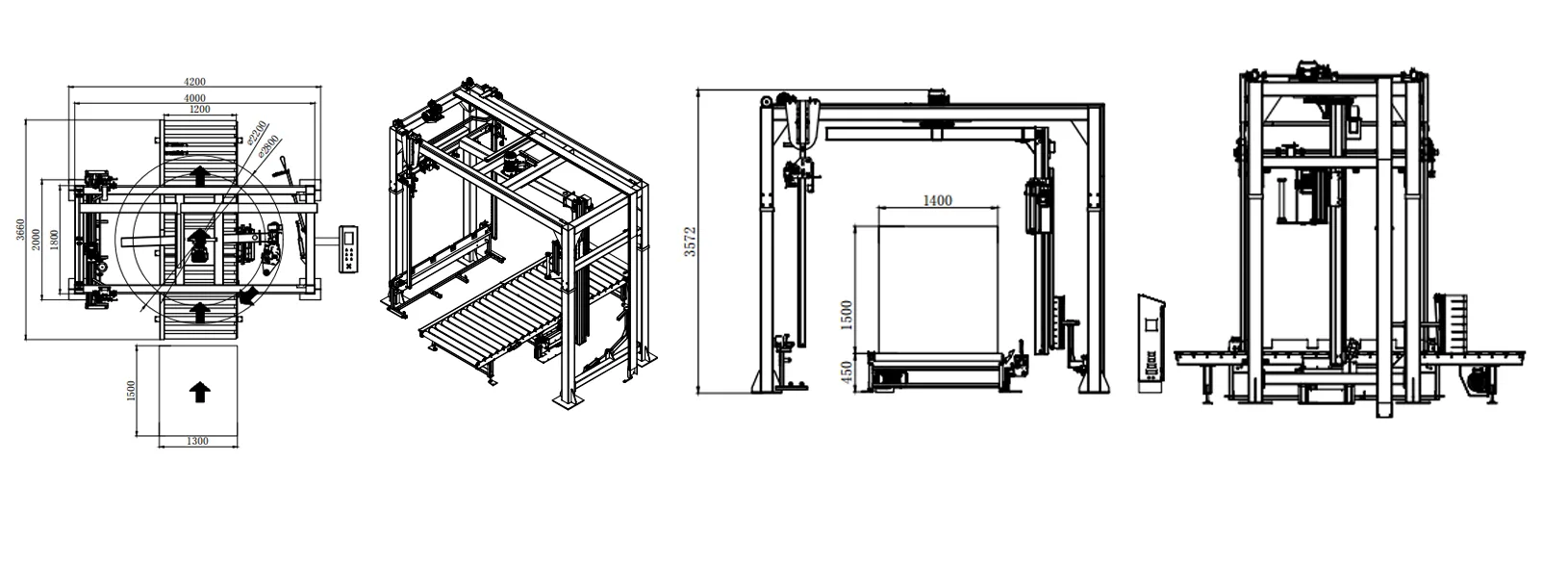

Drawing Size
