MQSPACK MP 402 Fully Auto Rotary Arm Wrapping Machine

  • The film wrapping mechanism automatically closes, breaks, and breaks the mucous membrane
  • Dynamic pre stretching membrane frame, pre stretching up to 250%
  • Photoelectric induction, automatic sensing of cargo height, more intelligent
  • Cantilever automatic reset, high sensitivity emergency braking system
  • Slewing bearing transmission, no noise, long service life
Get in touch

Description

Product Parameters
Rotation Speed: 0-20rpm/min，variable Power: 2.5KW+conveyor line
Pallet Size: W(500-1200)mm*L(500-1200)mm Conveyor Height: 450mm
Wrapping Height: 1800mm Conveyor Speed: 0-12m/min
Pre tensioning ratio: 250% Machine voltage: 380V,50/60HZ,20A
Carriage Speed: 3m/min Machine Weight: 1800kg
Top Sheet Pulling Speed: 12m/min Machine Dimensions: 3200*3220*3120mm
Top Sheet Size: 1800mm,length adjustable Control: PLC programmable control、touch screen
Cut Method: heater Working Method: fully auto unmanned
Packing Speed: 20-30 pallets/h Air Peessuce: 0.4-0.7Mpa

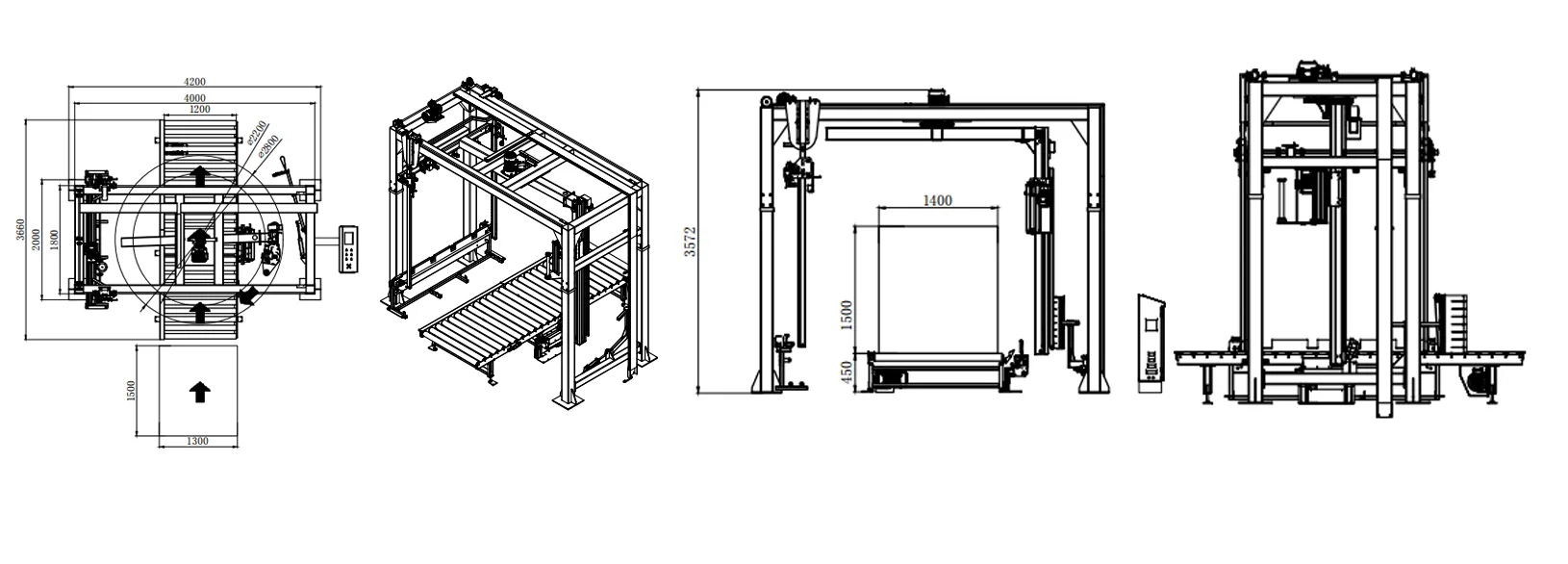

Drawing Size
